Capillary Tubing Definition
Stainless steel capillaries are used for automated instrumentation signal tubes, automated instrumentation wire protection tubes, etc.
Good softness, corrosion resistance, high temperature resistance, abrasion resistance, tensile strength and water resistance
And provide excellent electromagnetic shielding properties of building materials.
（More detailed introduction）
Characteristic:
It has good softness, corrosion resistance, high temperature resistance, abrasion resistance, tensile strength, water resistance and excellent electromagnetic shielding performance.
Specification:
∮2-∮8 Wall thickness: 0.1-2.0mm
Material:
321, SUS316L, 316, 310, 310S, 304, 304L, 302, 301, 202, 201, etc.
Uses:
Automatic instrument signal tube, automatic instrument wire protection tube;
Precision optical ruler line, industrial sensor, electronic equipment line protection tube;
Safety protection of electrical lines, protection of thermal instrumentation capillary tubes and internal support of air-core high-voltage cables.
Specific examples are as follows:
1) Medical equipment industry : injection needle, puncture needle, medical industrial tube.
2) Industrial electric heating pipe : industrial oil pipe
3) Thermostat temperature control tube : sensor tube, barbecue tube, thermometer tube, thermostat tube, instrument tube, thermometer stainless steel tube.
4) Pen industry pen tube : core tube, pen tube.
5) Various electronic micro tubes : fiber optic accessories, optical hybrids, small diameter stainless steel capillaries
6) Watch industry, child-mother : raw ear, watch with accessories, jewelry punch pin
7) Various antenna tubes : automobile tail antenna tubes, rod antenna tubes, stretching pointers, mobile phone stretching antenna tubes, miniature antenna tubes, laptop antennas, stainless steel antennas.
8) Stainless steel tube for laser engraving equipment.
9) Fish tube : fish rod tube
Stainless Steel Capillary Tube Sizes
| stainless steel capillary tube sizes | |||||
| 0.4*0.11 | 1.2*0.4 | 1.9*0.15 | 3*0.5 | 4.8*0.5 | 7.5*1 |
| 0.4*0.1 | 1.3*0.1 | 1.9*0.2 | 3*0.6 | 5*0.15 | 8*0.2 |
| 0.5*0.1 | 1.3*0.11 | 1.9*0.25 | 3*0.75 | 5*0.2 | 8*0.25 |
| 0.5*0.15 | *0.12 | 2*0.1 | 3*0.8 | 5*0.25 | 8*0.3 |
| 0.6*0.125 | *0.125 | 2*0.125 | 3*0.9 | 5*0.3 | 8*0.4 |
| 0.6*15 | *0.135 | 2*0.15 | 3*1 | 5*0.35 | 8*0.5 |
| 0.7*0.1 | *0.15 | 2*0.2 | 3*1.2 | 5*0.4 | 8*0.8 |
| 0.7*0.15 | 0.175 | 2*0.25 | 3.2*0.15 | 5*0.5 | 8*1 |
| 0.8*0.1 | 1.1*0.2 | 2*0.3 | 3.2*0.2 | 5*0.6 | 8*1.5 |
| 0.8*0.125 | 1.1*0.25 | 2*0.35 | 3.2*0.3 | 5*1 | 8*2 |
| 0.8*0.12 | 1.1*0.3 | 2*0.4 | 3.2*0.4 | 5*1.5 | 8.5*0.2 |
| 0.8*0.15 | 1.4*0.1 | 2*0.45 | 3.2*0.5 | 5.5*0.2 | 8.5*0.25 |
| 0.8*0.2 | 1.4**0.15 | 2*0.5 | 3.2*0.8 | 5.5*0.25 | 8.5*0.5 |
| 0.8*0.25 | 1.4*0.2 | 2*0.6 | 3.5*0.15 | 5.5*0.3 | 8.5*1 |
| 0.8*0.3 | 1.4*0.25 | 2*0.7 | 3.5*0.2 | 5.5*0.5 | 9*0.4 |
| 0.9*0.1 | 1.4*0.3 | 2.1*0.15 | 3.5*0.25 | 5.5*0.6 | 9*0.5 |
| 0.9*0.15 | 1.4*0.35 | 2.1*0.2 | 3.5*0.3 | 5.5*0.75 | 9*0.8 |
| 1*0.1 | 1.4*0.4 | 2.2*0.15 | 3.5*0.5 | 5.5*1 | 9*1 |
| 1*0.125 | 1.45*0.1 | 2.2*0.2 | 3.5*1 | 5.8*0.5 | 9.5*0.5 |
| 1*0.135 | 1.5*0.15 | 2.2*0.3 | 3.7*0.2 | 5.8*0.7 | 9.5*0.7 |
| 1*0.15 | 1.5**0.125 | 2.3*0.15 | 3.7*0.5 | 6*0.15 | 9.5*1 |
| 1*0.16 | 1.5**0.15 | 2.3*0.2 | 3.8*0.2 | 6*0.2 | 10*0.2 |
| 1*0.2 | 1.5*0.2 | 2.3*0.3 | 3.8*0.25 | 6*0.25 | 10*0.25 |
| 1*0.25 | 1.5*0.25 | 2.4*0.12 | 4*0.15 | 6*0.3 | 10*0.3 |
| 1*0.3 | 1.5*0.3 | 2.4*0.2 | 4*0.2 | 6*0.4 | 10*0.4 |
| 1*0.35 | 1.5*0.35 | 2.5*0.15 | 4*0.25 | 6*0.5 | 10*0.5 |
| 1*0.4 | 1.5*0.4 | 2.5*0.2 | 4*0.3 | 6*0.6 | 10*0.8 |
| 1.1*0.1 | 1.6*0.1 | 2.5*0.25 | 4*0.4 | 6*0.8 | 10*1 |
| 1.1*0.12 | 1.6*0.12 | 2.5*0.3 | 4*0.5 | 6*1 | 10*1.5 |
| 1.1*0.125 | 1.6*0.15 | 2.5*0.325 | 4*0.6 | 6*1.5 | 10*2 |
| 1.1*0.135 | 1.6*0.2 | 2.5*0.4 | 4*0.7 | 6.5*0.2 | 11*0.5 |
| 1.1*0.14 | 1.6*0.25 | 2.5*0.5 | 4*0.75 | 6.5*0.25 | 11*1 |
| 1.6*0.3 | 2.5*0.6 | 4*0.8 | 6.5*0.3 | 12*0.25 | |
| 1.6*0.35 | 2.5*0.85 | 4*0.9 | 6.5*0.5 | 12*0.5 | |
| 1.6*0.4 | 6.5*0.8 | 12*1 | |||
Remarks:
1. Specifications: outer diameter (mm) * wall thickness (mm)
2. Can produce materials: 304, 304L, 316L, 317, 321 and other materials
3. Due to the large number of specifications, please do not list them all. If you need to consult, please contact us.
Stainless Steel Capillary Tube Suppliers
JawaySteel was founded in 1998, is a professional manufacturer and export company.
After 20 years of development and expansion, Now we have 5 departments to provide better service.
They respectively are: sales department, Production department, logistics department, Financial Department, customer service department.
Our well-equipped factory emerged in Dainan, Jiangsu Province , with two Export offices respectively located in Shanghai and HongKong catering to a lager scale of customers with supreme service.
At present, Our factory covers a land area of 18000 square meters, with 203 employees and 24 technicians.
We have a series of stainless steel product, such as stainless steel sheet, coil, pipe, wire, bar, , with international Standard of GB, ASTM, JIS, EN, DIN, KSD, and IS to meet customer’s various demand.
Our products have already passed ISO9001: 2000 certification quality system certification.
Gross volume of export up to 500,000 tons, which is widely used in petrochemical, medical, shipbuilding, construction , precision instrument manufacturing and so on, And received many positive feedback from our customers.
JawaySteel insisted “High quality, low price, ample supply, timely delivery”.
Professional, high quality, low price is our core competitiveness, and We constantly improve our business philosophy and production technology to meet the needs of the market.
If you have any interest in our products, please contact us without hesitation. We are always be here and willing to serve you as a sincere partner!
Stainless Steel Capillary Pipe Manufacture By JawaySteel
Grade and Quality:
200 series:201,202.204Cu.
300 series:301,302,304,304Cu,303,303Se,304L,305,307,308,308L,309,309S,310,310S,316,316L,321.
400 series:410,420,430,420J2,439,409,430S,444,431,441,446,440A,440B,440C.
Duplex and Others:2205,904L,S31803,330,660,630,17-4PH,631,17-7PH,2507,F51,S31254 etc.
Size and Diameter:
Diameter from 1mm to 10mm,thickness from 0.07mm to 0.5mm,base on buyer’s requirement
Surface and Finishing:
Pickled,bright,matt,polished,mirror.
Application and Usage:
The high quality Stainless steel capillary pipe / tube manufactured by Jawaysteel is widely used for automation instrument, wire protection tube,precision optical ruler line,industrial sensors,etc.
Packing:

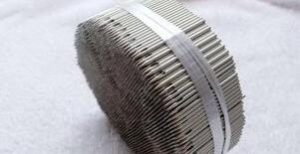

Wooden box: packing for stainless steel capillary pipe/tube.
Wooden and pallet packing.Other packing as per customer requirement.

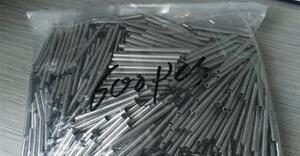

Plastic bag and paper box
Plastic rope
Plastic bag
Stick to keep pipes straight
Professional shock
Complete package
Our Office:
Shanghai Jaway Metal Co.,Ltd
Address:Suite 15G,YongRong Enterprise Center,No.1111 Liyang Road,HongKou Area,Shanghai,200081,China.
Tel: +86-21-36360933 36360955 36361733 36361755
Fax: +86-21-36361766
Email: sales@jawaysteel.com
Our Factory:
Jiangsu Jaway Stainless Steel Products Co.,Ltd
Address:Dainan Industrial park, Xinghua Jiangsu Province, China
Tel:+86-523-83580888 83772111 83771119
Fax:+86-523-83773111 83772119
Email: sales@jsjwbxg.com
300 Series Stainless Steel Capillary Tube
316 Stainless Steel Capillary Tube
316 stainless steel, 18Cr-12Ni-2.5Mo stainless steel due to the addition of Mo, so its corrosion resistance, atmospheric corrosion resistance and high temperature strength is particularly good
Can be used under harsh conditions
Excellent work hardening (non-magnetic).
Chemical composition
|
C
|
Si
|
Mn
|
P
|
S
|
Ni
|
Cr
|
Mo
|
|
≤0.08
|
≤1.00
|
≤2.00
|
≤0.035
|
≤0.03
|
10.0-14.0
|
16.0-18.5
|
2.0-3.0
|
Mechanical properties
|
Mpa/Tensile Strength
|
Mpa/Yield Strength
|
Elongation/%
|
Area Reduction/%
|
Density/ρ
|
|
620 MIN
|
310 MIN
|
30 MIN
|
40 MIN
|
8.03 g/cm3
|
Characteristic
16 stainless steel capillary tube has good flexibility, corrosion resistance, high temperature resistance, wear resistance and the like, and provides excellent electromagnetic shielding performance because of its small diameter.
Can be freely bent into various angles and radii of curvature, with the same softness and durability in all directions;
The axial tensile force can withstand more than 6 times the nominal inner diameter.
310S Stainless Steel Capillary Tube
When cooling, the function of the 310S stainless steel capillary is to discharge the high-pressure liquid refrigerant from the condenser into a low-pressure liquid refrigerant by throttling and then enter the evaporator.
Chemical composition of 310S (%):
Ni: 19.00-22.00
Cr: 24.00-26.00
Si <= 1.50
Mn <= 2.00
C <= 0.08
S <= 0.030
P <= 0.035
310s is austenitic chrome-nickel stainless steel with good oxidation resistance and corrosion resistance because of a higher percentage of chromium and nickel
The 310s has a much better creep strength, can work continuously at high temperatures, and has good high temperature resistance.
304 Stainless Steel Capillary Tube
304 stainless steel capillary refers to a high alloy steel that resists corrosion in air or chemically corrosive media.
It has an aesthetically pleasing surface and good corrosion resistance. It does not require surface treatment such as plating, but exerts the surface properties inherent in stainless steel and is used in many aspects of steel.
304 is a versatile stainless steel that is widely used to make equipment and parts that require good overall performance (corrosion resistance and formability).
304 stainless steel is a grade of stainless steel produced in accordance with American ASTM standards.
