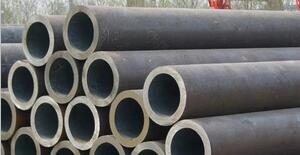

At present, China’s large-diameter seamless steel pipe, the main production process is hot-rolled large-diameter seamless steel pipe and hot-expanded seamless steel pipe





The maximum specification of the thermal expansion seamless steel pipe is 325mm-1220mm and the maximum thickness is 200mm.

Thermally expanded seamless steel tubes can be produced in non-national sizes.



The heat expansion seamless pipe is the heat expansion pipe that we often say. The steel pipe with low density but strong shrinkage is expanded by the cross-rolling method or the drawing method.



A waste pipe finishing process for large pipe diameters.



In a relatively short period of time, the steel pipe is thickened, and non-standard, special-type seamless pipes can be produced, and the cost is low and the production efficiency is high, which is the development trend in the international rolling pipe field.



Large Diameter Seamless Pipe Delivery Status

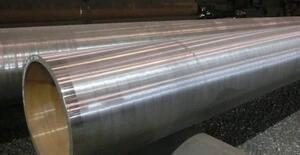

A steel produced by cold-drawing, cold-rolling, etc. of a large-diameter seamless steel pipe, which is directly delivered without any heat treatment, is called a cold drawn or cold rolled state.



Compared with the hot-rolled (rolled) state, the steel in the cold-drawn (rolled) state has high dimensional accuracy, good surface quality, low surface roughness, and high mechanical properties.



Since the steel surface delivered in the cold-drawn (rolled) state has no scale covering and has a large internal stress, it is highly susceptible to corrosion or rust.

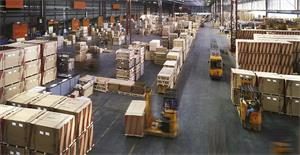

Therefore, the steel in the cold drawing (rolling) state has strict requirements for packaging, storage and transportation, and generally needs to be kept in the warehouse, and attention should be paid to the temperature and humidity control in the warehouse.



Large-diameter seamless steel tubes are not heat-treated after hot rolling or forging, and are delivered directly after cooling, which is called hot rolling or hot forging.



The termination temperature of hot rolling (forging) is generally 800 to 900 ° C, and then generally is naturally cooled in the air, so that the hot rolling (forging) state is equivalent to normalizing treatment.



The difference is because the hot rolling (forging) termination temperature is high and low, unlike the normalizing heating temperature control is strict, so the steel structure and performance fluctuations are larger than the normalizing.



At present, many steel companies adopt controlled rolling. Since the final rolling temperature control is very strict and forced cooling measures are taken after the final rolling, the grain of the steel is refined, and the delivered steel has a high comprehensive mechanical property.



The large-diameter seamless steel pipe is annealed and heat-treated before leaving the factory. This delivery state is called annealing.



The purpose of annealing is mainly to eliminate and improve the structural defects and internal stress left in the previous process, and to prepare for the organization and performance of the subsequent process.

---

Large Diameter Seamless Steel Pipe Material





10#,20#,Q345,45#,20G,ST37,ST52,etc.

---

Large Diameter Seamless Steel Pipe Sizes





Remarks：

Sizes（mm）

Sizes	Sizes	Sizes	Sizes	Sizes	Sizes
406*16	457*32	508*80	530*22	660*80	820*55
406*17	457*35	508*90	530*25	660*90	820*60
406*18	457*40	508*100	530*28	660*100	820*70
406*19	457*45	530*16	610*30	660*150	820*80
406*20	457*50	530*17	610*32	710*20	820*90
406*22	457*55	530*18	610*35	710*22	820*100
406*25	457*60	530*19	610*40	710*25	820*150
406*28	457*65	530*20	610*45	710*28	820*200
406*30	457*70	530*22	610*50	710*30	864*40
406*32	457*80	530*25	610*55	710*32	864*55
406*35	457*90	530*28	610*60	710*35	864*60
406*40	457*100	530*30	610*65	710*40	864*70
406*45	480*16	530*32	610*70	710*45	864*80
406*50	480*17	530*35	610*80	710*50	864*90
406*55	480*18	530*40	610*90	710*55	864*100
406*60	480*19	530*45	610*100	710*60	864*150
406*65	480*20	530*50	610*150	710*65	864*200
406*70	480*22	530*55	630*18	710*70	900*60
406*80	480*25	530*60	630*19	710*80	900*70
406*90	480*28	530*65	630*20	710*90	900*80
426*16	480*30	530*70	630*22	710*100	900*90
426*17	480*32	530*80	630*25	710*150	900*100
426*18	480*35	530*90	630*28	720*25	900*150
426*19	480*40	530*100	630*30	720*28	900*200
426*20	480*50	559*16	630*32	720*30	950*60
426*22	480*55	559*17	630*35	720*32	950*70
426*25	480*60	559*18	630*40	720*35	950*80
426*28	480*65	559*19	630*50	720*40	950*90
426*30	480*70	559*20	630*55	720*50	950*100
426*32	480*80	559*22	630*60	720*55	950*150
426*35	480*90	559*25	630*65	720*60	950*200
426*40	480*100	559*28	630*70	720*65	1000*80
426*45	508*16	559*30	630*80	720*70	1000*90
426*50	508*17	559*32	630*90	720*80	1000*100
426*55	508*18	559*35	630*100	720*90	1000*150
426*60	508*19	559*40	630*150	720*100	1000*200
426*70	508*20	559*50	660*20	720*150	1050*80
426*80	508*22	559*55	660*22	812.8*40	1050*90
426*90	508*25	559*60	660*25	812.8*45	1050*100
426*100	508*28	559*65	660*28	812.8*50	1050*150
457*16	508*30	559*70	660*30	812.8*55	1050*200
457*17	508*32	559*80	660*32	812.8*60	1100*80
457*18	508*35	559*90	660*35	812.8*70	1100*90
457*19	508*40	559*100	660*40	812.8*80	1100*100
457*20	508*50	610*16	660*50	812.8*90	1100*150
457*22	508*55	610*17	660*55	812.8*100	1100*200
457*25	508*60	610*18	660*60	812.8*150	1200*80
457*28	508*65	610*19	660*65	812.8*200	1200*90
457*30	508*70	610*20	660*70	820*50	1200*200

---

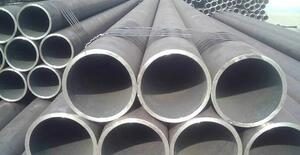

Large Diameter Seamless Steel Pipe Stocks





Remarks：

Sizes（mm），Quantity：The number of this specification

Sizes	Quantity	Sizes	Quantity	Sizes	Quantity	Sizes	Quantity	Sizes	Quantity	Sizes	Quantity
406*16	12	457*32	20	508*80	20	530*22	10	660*80	20	820*55	56
406*17	14	457*35	25	508*90	20	530*25	20	660*90	20	820*60	52
406*18	14	457*40	20	508*100	20	530*28	15	660*100	20	820*70	54
406*19	14	457*45	25	530*16	30	610*30	20	660*150	20	820*80	50
406*20	14	457*50	15	530*17	20	610*32	10	710*20	30	820*90	65
406*22	14	457*55	20	530*18	20	610*35	10	710*22	15	820*100	62
406*25	18	457*60	20	530*19	20	610*40	10	710*25	20	820*150	61
406*28	20	457*65	15	530*20	30	610*45	10	710*28	15	820*200	63
406*30	25	457*70	20	530*22	20	610*50	20	710*30	20	864*40	75
406*32	25	457*80	20	530*25	30	610*55	15	710*32	15	864*55	78
406*35	25	457*90	25	530*28	30	610*60	15	710*35	15	864*60	79
406*40	25	457*100	20	530*30	20	610*65	10	710*40	20	864*70	81
406*45	50	480*16	50	530*32	30	610*70	60	710*45	20	864*80	89
406*50	28	480*17	15	530*35	20	610*80	10	710*50	20	864*90	85
406*55	25	480*18	15	530*40	20	610*90	10	710*55	15	864*100	25
406*60	20	480*19	30	530*45	20	610*100	15	710*60	25	864*150	36
406*65	25	480*20	20	530*50	20	610*150	15	710*65	30	864*200	23
406*70	20	480*22	20	530*55	25	630*18	15	710*70	60	900*60	68
406*80	25	480*25	20	530*60	25	630*19	15	710*80	30	900*70	23
406*90	20	480*28	20	530*65	60	630*20	10	710*90	30	900*80	35
426*16	25	480*30	25	530*70	30	630*22	25	710*100	54	900*90	39
426*17	25	480*32	15	530*80	60	630*25	15	710*150	50	900*100	69
426*18	20	480*35	15	530*90	30	630*28	15	720*25	65	900*150	80
426*19	15	480*40	20	530*100	60	630*30	15	720*28	62	900*200	59
426*20	25	480*50	20	559*16	30	630*32	15	720*30	61	950*60	69
426*22	20	480*55	20	559*17	30	630*35	15	720*32	63	950*70	56
426*25	25	480*60	15	559*18	30	630*40	15	720*35	75	950*80	88
426*28	30	480*65	25	559*19	20	630*50	25	720*40	78	950*90	42
426*30	25	480*70	15	559*20	20	630*55	20	720*50	79	950*100	40
426*32	20	480*80	15	559*22	20	630*60	15	720*55	81	950*150	50
426*35	28	480*90	20	559*25	20	630*65	15	720*60	89	950*200	51
426*40	28	480*100	20	559*28	20	630*70	15	720*65	85	1000*80	52
426*45	20	508*16	20	559*30	20	630*80	15	720*70	69	1000*90	63
426*50	30	508*17	15	559*32	15	630*90	20	720*80	56	1000*100	89
426*55	28	508*18	25	559*35	15	630*100	20	720*90	25	1000*150	85
426*60	29	508*19	20	559*40	15	630*150	20	720*100	56	1000*200	69
426*70	15	508*20	15	559*50	15	660*20	20	720*150	52	1050*80	63
426*80	15	508*22	15	559*55	15	660*22	50	812.8*40	54	1050*90	72
426*90	30	508*25	15	559*60	15	660*25	35	812.8*45	50	1050*100	75
426*100	28	508*28	20	559*65	15	660*28	35	812.8*50	65	1050*150	78
457*16	30	508*30	10	559*70	20	660*30	40	812.8*55	62	1050*200	65
457*17	10	508*32	10	559*80	20	660*32	40	812.8*60	61	1100*80	85
457*18	15	508*35	25	559*90	20	660*35	20	812.8*70	63	1100*90	58
457*19	10	508*40	25	559*100	20	660*40	20	812.8*80	75	1100*100	65
457*20	20	508*50	20	610*16	30	660*50	20	812.8*90	78	1100*150	78
457*22	15	508*55	30	610*17	15	660*55	20	812.8*100	79	1100*200	89
457*25	25	508*60	30	610*18	20	660*60	25	812.8*150	81	1200*80	96
457*28	30	508*65	20	610*19	15	660*65	15	812.8*200	89	1200*90	82
457*30	15	508*70	50	610*20	20	660*70	30	820*50	85	1200*200	56

---

Large Diameter Seamless Steel Pipe Manufacturers

JawaySteel was founded in 1998, is a professional manufacturer and export company.



After 20 years of development and expansion, Now we have 5 departments to provide better service.



They respectively are: sales department, Production department, logistics department, Financial Department, customer service department.

Our well-equipped factory emerged in Dainan, Jiangsu Province , with two Export offices respectively located in Shanghai and HongKong catering to a lager scale of customers with supreme service.



At present, Our factory covers a land area of 18000 square meters, with 203 employees and 24 technicians.



We have a series of stainless steel product, such as stainless steel sheet, coil, pipe, wire, bar, , with international Standard of GB, ASTM, JIS, EN, DIN, KSD, and IS to meet customer’s various demand.



Our products have already passed ISO9001: 2000 certification quality system certification.



Gross volume of export up to 500,000 tons, which is widely used in petrochemical, medical, shipbuilding, construction , precision instrument manufacturing and so on, And received many positive feedback from our customers.



JawaySteel insisted “High quality, low price, ample supply, timely delivery”.



Professional, high quality, low price is our core competitiveness, and We constantly improve our business philosophy and production technology to meet the needs of the market.



If you have any interest in our products, please contact us without hesitation. We are always be here and willing to serve you as a sincere partner!
