Stainless steel pipe is a hollow strip of round steel, which is widely used in petroleum, chemical, medical, food, light industry, mechanical instrumentation and other industrial pipelines and mechanical structural components.



Stainless steel tubes can be divided into round tubes and shaped tubes according to the cross-sectional shape. The special-shaped tube has a semicircular tube, a rectangular tube elliptical tube, a hexagonal tube, and the like, and various cross-section asymmetric tubes.



This time we are talking about stainless steel half round tube belonging to the type of shaped tubes.



---

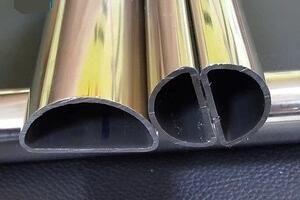

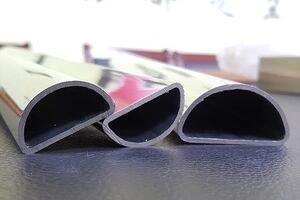

What is a stainless steel half round pipe



Grade:



201, 202, 304, 304L, 316L



round tube size	OD-12.7-127mm Thickness-0.5-4.0mm
oval tube size	OD-20×40-60×120mm Thickness-1.0-3.0mm
square tube size	OD-10×10-150×150mm Thickness-0.5-4.0mm
rectangular tube size	OD-20×10-120×60mm above Thickness-0.5-4.0mm
Half round tube (D tube)size	OD-62.7×32.4mm Thickness-1.5-2.0mm



Length:



As per your requirement, 1-6m commonly produced



Surface:



2B, BA, No. 1, No. 2, Hairline. Sand blast etc.



Application field



Widely used in decorative pipes, kitchen utensils, hardware products, food industry, sugar and wine equipment, beer pipes, heat dissipation equipment, mechanical automation equipment, auto accessories, heat exchangers, airports, subways, stations, shopping malls, buildings, hotels , glass handrails and other decorative engineering industries. Can also be customized according to customer requirements.



Implementation standards:



ASTM A554, A249, A269, A270, A312; BS EN10312:2002; MS1988; ISO9001:2008



Chemical composition:



C	Mn	Cr	Ni	S
≤0.08	≤2.0	18.0～20.0	8.0～10.5	≤0.03
Density	Hardness	Yield Strength（N/mm2）	Melting point	Tensile strength
7.93 g/cm3	HB ≤187 HRB≤90 HV ≤200	≥205	1398～1420℃	≥520

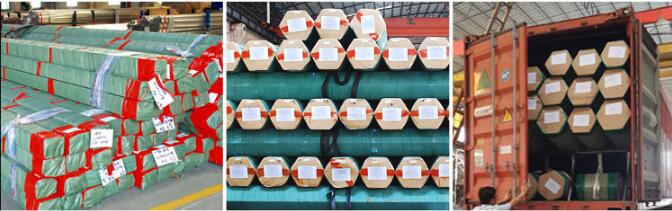

Packing:

packaging film / white film





Common sizes



13*25	34*80
14*21	35*55
14*58	35*80
15*30	40*110
15.5*26	40*60
15.7*30	40*80
16*34	42*75
18*33	46*100
18.9*25.3	50*100
20*30	50*120
20*40	50*150
20*90	57*93
23*38	6*12
24.9*40	60*120
30*60	60*90
31*62	78*145
	95*180
