U Bend shape heat exchanger 304 stainless steel seamless pipes
- Standard : ASTM, AISI, DIN, EN, JIS
- Place of Origin : Tianjin, China (Mainland)
- Brand Name : YCT
- Model Number : 304 stainless steel seamless pipes
- Type : seamless, welded
- Steel Grade : 304 316 316L 316Ti 321
- Application : Boiler
- Certification : ISO, SGS
- Welding Line Type : seamless, welded
- Thickness : 0.5mm-5mm
- Outer Diameter : 12mm – 48mm
- Item : 304 stainless steel seamless pipes
- Length : 4-12m or as required
- Payment terms : L/C T/T
- Price Terms : FOB, CRF, CIF, EXW
- Surface : brightly, polished, annealed
- Shape : Round.square.Rectangle
- Sample : available
- Material : TP304 316 316L
- Technique : Cold Drawn, Cold Rolled
- Finish : Annealed, Polished
SupplyAbility
- SupplyAbility : 1500 Ton/Tons per Month 304 stainless steel seamless pipes with stocks
Packaging & Delivery
- Packaging Details
- Port：Tianjin, any China port
- Lead Time : 10-20 days after payment
-
Product Show

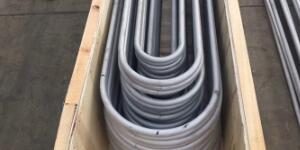

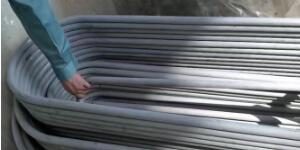

U bend shape 304 stainless steel seamless pipes
Stainless steel seamless pipes
Material:
TP304 / 304L / 304H，316 / 316L，321 / 321H，317 / 317L，347 / 347H，309S，310S，S31803，S32205，S2570，S32760，S32304,904L
08X18H10 03X18H11 08X18H10T 12X18H10T 08X17H14M2 03X17H14M2 10X17H13M2T 20X23H18SUS304TP SUS304LTP SUS304HTP SUS316TP SUS316LTP SUS316HTP，SUS321TP，SUS321HTP，SUS347TP，SUS347HTP，SUS310STP
SUS317TP，SUS890LTP，EN1.4301,1.4306,1.4940,1.4401,1.4404,1.4571,1.4451,1.4833,1.4878,1.4550,1.4462,1.4448,1.4845。
Size:
Out Diameter 19mm, 25mm 32mm, 38mm available in stock, according to the requirements of the length, the maximum can be done 30M,
Technique:
Cold Drawn (annealing, pickling for the soft state industrial pipe)
Cold Rolled (uniform wall thickness, hard annealed inside and outside bright, annealed into a soft state industrial tube)
Detection:
According to customer requirements can do water pressure, ultrasonic, eddy current testing.
Features:
Stainless steel condensing tube, with high temperature steam, impact corrosion, ammonia corrosion; anti-fouling, not easy to stain, anti-oxidation; long life, reduce maintenance time , Saving costs; pipe technology is good, can be directly replaced, pipe wall uniform, safe and reliable, the overall thermal conductivity is better than copper; is the ideal unit for the transformation and manufacture of new equipment, the ideal heat exchange products.
Item Stainless Heat Exchanger Pipe Standard ASME SA213 Grade 304 316 316L 321 310S 347H 2205 2507 904L Size OD 19MM, 25MM, 32MM, 38MM or as reqired W.T. 1.0MM – 5MM
Length: 4-12m, as per required
