SUS, AISI, ASTM, DIN Standard Precision Stainless Steel Capillary Tube By JawaySteel
Basic Info
- Grade: 201, 202, 301, 302, 304, 304L, 316, 316L, 310S, 31
- Certificate: ISO, SGS, Ce or Other Third Party Inspection Accep
- Thickness: 0.5mm-100mm
- Outer Diameter: 8mm-680mm
- Surface: No.1, 2b, Ba, Hair Line, Mirror (8K), No.4
- Trade Terms: Fob/CFR/CIF
- Trademark: JawaySteel
- Transport Package: Standard Export Package or as Required
- Origin: China
| Min. Order / Reference FOB Price | |
|---|---|
| 1 Ton | US $1,500-2,000/ Ton（This price is for reference only） |
| Port: | China |
|---|---|
| Production Capacity: | 2000ton/Month |
| Payment Terms: | L/C, T/T, D/P,etc. |
| Type: | Pipe |
|---|---|
| Technique: | Cold Rolled |
| Material: | Stainless Steel |
| Surface Treatment: | No.1, 2b, Ba, Hair Line, Mirror (8K), No.4 |
| Usage: | Pipeline Transport, Boiler Pipe, Hydraulic/Automobile Pipe, Oil/Gas Drilling, Food/Beverage/Dairy Products, Machinery Industry, Chemical Industry, Mining, Construction & Decoration, Special Purpose |
| Section Shape: | Round |
Product Description

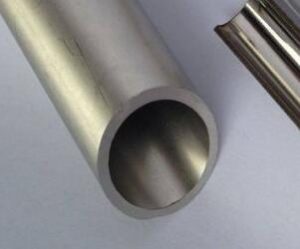

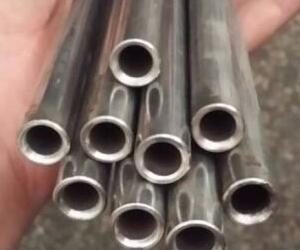

SUS, AISI, ASTM, DIN Standard Precision Stainless Steel Capillary Tube
| Standard | ASTM, JIS, DIN EN, GB |
| Grade | 201, 202, 301, 302, 304, 304L, 316, 316L, 310S, 310,405, 409, 430, 410, 420, 440A, etc. |
| Certificate | ISO, SGS ,CE or other third party inspection acceptable. |
| Outer Diameter | 1) Round pipe: 8mm to 680 mm 2) Square pipe: 10x10mm to 300x300mm 3) Rectangular pipe: 10x20mm to 120x180mm |
| Thickness | 0.5mm-100mm |
| Surface | Hot Rolled: No.1 |
| Type | Seamless, Welded, Decoration, Sanitary, Precision, Capillary pipe/tube |
| Shape | Round, Square, Rectangular, Slot, Oval, etc |
| Length | 6m or as customer’s request |
| Surface | 180G, 320G, 400G Satin / Hairline 400G, 500G, 600G or 800G Mirror finish,HL,8K,etc |
| Trade terms | FOB/CFR/CIF |
| Payment terms | T/T, L/C,etc. |
| Delivery Time | 15-20 days after receive the deposit. |
| Packing | standard export package or as required. |
| Port of shipment | Tianjin, Shanghai or as required. |
Chemical Composition
| Chemical Composition (%) | ||||||||||||
| C | Si | Mn | P | S | Ni | Cr | Mo | Cu | N | Other | ||
| 1Cr17Mn6Ni5N | 201 | 0.15 | 1.00 | 5.50–7.50 | 0.050 | 0.03 | 3.50-5.50 | 16.00-18.00 | – | – | 0.05-0.25 | – |
| 0Cr18Ni9 | 304 | 0.08 | 1.00 | 2.00 | 0.045 | 0.03 | 8.00-11.00 | 18.00-20.00 | – | – | – | – |
| 00Cr19Ni10 | 304L | 0.03 | 1.00 | 2.00 | 0.045 | 0.03 | 8.00-12.00 | 18.00-20.00 | – | – | – | – |
| 2Cr25Ni20 | 310 | 0.25 | 1.50 | 2.00 | 0.040 | 0.03 | 19.00-22.00 | 24.00-26.00 | – | – | – | |
| 0Cr25Ni20 | 310S | 0.08 | 1.50 | 2.00 | 0.045 | 0.03 | 19.00-22.00 | 24.00-26.00 | – | – | – | |
| 0Cr17Ni12Mo2 | 316 | 0.08 | 1.00 | 2.00 | 0.045 | 0.03 | 10.00-14.00 | 16.00-18.00 | 2.00-3.00 | – | – | |
| 00Cr17Ni14Mo2 | 316L | 0.03 | 1.00 | 2.00 | 0.045 | 0.03 | 10.00-14.00 | 16.00-18.00 | 2.00-3.00 | – | – | |
| 0Cr18Ni10Ti | 321 | 0.08 | 1.00 | 2.00 | 0.045 | 0.03 | 9.00-12.00 | 17.00-19.00 | – | – | – | Ti 5C-0.70 |
| 1Cr17 | 430 | 0.12 | 1.00 | 1.00 | 0.040 | 0.03 | (0.06) | 16.00-18.00 | – | – | ||
Mechanical Property
| ASTM | TS(MPa)≥ | YS(MPa)≥ | EL(%)≥ | Hardness | |
| HB | HRC | ||||
| 201 | 520 | 275 | 40 | 241 | 100 |
| 304 | 520 | 205 | 40 | 187 | 90 |
| 304L | 480 | 175 | 40 | 187 | 90 |
| 310 | 520 | 205 | 40 | 187 | 90 |
| 310S | 520 | 205 | 40 | 187 | 90 |
| 316 | 520 | 205 | 40 | 187 | 90 |
| 316L | 480 | 175 | 40 | 187 | 90 |
| 321 | 520 | 205 | 40 | 187 | 90 |
| 430 | 450 | 205 | 22 | 183 | 88 |
