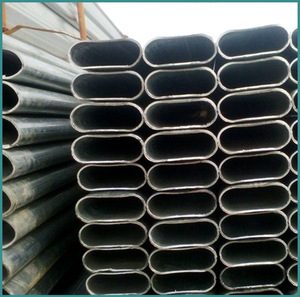

Stainless Steel Pipes with Flat Sided Oval Shape

Stainless Steel Pipes with Flat Sided Oval Shape By JawaySteel

Min. Order / Reference FOB Price
3 Pieces	US $24/ Piece（this price is for reference only）

Type:	Welded
Technique:	ERW
Material:	Stainless Steel
Surface Treatment:	Polished, Hairline
Usage:	Pipeline Transport, Construction & Decoration
Section Shape:	Flat Sided Oval

Item Name:	Stainless Steel Welded or Seamless Flat Sided Oval Tubes
Standard:	ASTM A554; ASTM A312
Grade of Material:	AISI 201, 202, 304, 304L, 316, 316L, etc.
Certificate:	ISO 9001: 2008
Dimension:	15 mm x 8 mm – 195 mm x 100 mm (See Range Below)
Wall Thickness:	0.3 mm – 5.0 mm
Surface:	Polished 320 G, 400 G, 600 G; Hairline; Descaled.
Length:	10 mm – 10000 mm
Packing:	Each or several tubes (pipes) would be sleeved in plastic bag individually，and then a bundle of them would be packed by a weaving bag which is seaworthy.
Application:	Decoration, construction & building, such as handrail, railing, window, furniture, etc.
Chemical Composition:	Grade of Material	C	Si	Mn	P	S	Ni	Cr	Mo
	AISI 201	≤0.15	≤1.00	5.50~7.50	≤0.060	≤0.03	1.00 ~1.50	13.50~15.00	\
	AISI 202	≤0.15	≤1.00	7.50~10.00	≤0.060	≤0.03	4.00~6.00	17.00~19.00	\
	AISI 304	≤0.08	≤1.00	≤2.00	≤0.045	≤0.03	8.00~11.00	18.00~20.00	\
	AISI 304L	≤0.035	≤1.00	≤2.00	≤0.045	≤0.03	8.00~13.00	18.00~20.00	\
	AISI 316	≤0.08	≤1.00	≤2.00	≤0.045	≤0.03	10.00~14.00	16.00~18.00	2.00~3.00
	AISI 316L	≤0.035	≤1.00	≤2.00	≤0.045	≤0.03	10.00~14.00	16.00~18.00	2.00~3.00
Mechanical Property:	Grade of Material	Elongation (%)		Tensile Strengh (Rm) N/m m³		Yield Strength (Rp) 0.2%N/m m³		Hardness (HV)
	AISI 201	≥35		≥520		≥210		≤253
	AISI 202	≥35		≥590		≥210		≤218
	AISI 304	≥35		≥520		≥210		≤200
	AISI 304L	≥35		≥480		≥180		≤200
	AISI 316	≥35		≥520		≥210		≤200
	AISI 316L	≥35		≥480		≥180		≤200
