Stainless Steel Precision Tube(Seamless/Welded/Polishing)

News admin

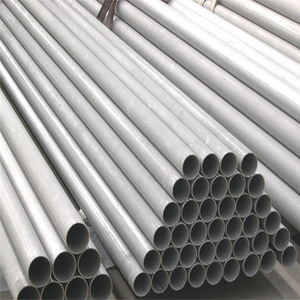

Stainless steel precision seamless tube

Overview

  • Standard : ASTM, AISI, DIN, EN, GB, JIS
  • Place of Origin : DAINAN, China (Mainland)
  • Brand Name : JawaySteel
  • Model Number : 201 202 304 316 309 321 409 439 446 444
  • Steel Grade : 300 Series
  • Application : in the petroleum, chemical, medical equipment etc.
  • Certification : ISO
  • Welding Line Type : Spiral Welded
  • Thickness : 0.1-60mm
  • Outer Diameter : 1mm-1500mm
  • Surface finish : pickled,2B, mirrior, hairline
  • Size : 1~1000mm OD
  • MOQ : 500KG
  • Materail : 446, 201, 304, 316, 316Ti, 347, 2205, 600, 660 ,800 ect
  • Sample : Sample cost free for VIP customer
  • Packing : in bundles, pack with woven belt
  • Certificate : ISO, SGS, BV
  • Quality : High



Product Name:  High precision seamless stainless steel tube

Standard: ASTM A312, A213, A269, A511, A789, A790, A376, EN 10216-5, EN 10297,DIN 17456, DIN 17458,JISG3459, JIS GS3463, GS3467, JIS G3448, GOST 9940, GOST 9941,



Material:1.4301, 1.4306, 1.4948, 1.4401, 1.4404, 1.4571, 1.4541, 1.4833, 1.4878, 1.4550, 1.4462, 1.4438, 1.4845.

304/304L, TP316/316L, TP321309S, 310S, 2205, 2507, 904L,TP405, TP409, TP410S, TP430, TP439
08X18H10 03X18H11 08X18H10T 12X18H10T 08X17H14M2 03X17H14M2 10X17H13M2T 20X23H18
SUS304TP SUS304LTP SUS304HTP SUS316TP SUS316LTP SUS316HTP, SUS321TP, SUS321HTP, SUS347TP, SUS347HTP, SUS310STP SUS317TP, SUS890LTP,



Nominal Dia: 1/2 “to 32” NB for seamless pipe



Schedules: 5S, 10S, 40S, 80S, 10, 20, 30…120, 140, 160, XXS
All dimensions are in accordance with ANSI B36.19 and ANSI B36.10
Size Range for tubing: OD:1/4″ (6.25mm) to 8″ (203mm), WT 0.02″ (0.5mm) to 0.5″(12mm)



Length:30 m(Max) or as your requirement



Process: Cold drawn, Cold rolled, Precision Rolled for Seamless Pipe or Tube

Finish: Annealed & pickled, bright annealing, polished

Ends: Beveled or plain end, square cut, burr free ,Plastic Cap at Both end

Stainless steel precision seamless tube sizes

Outer Diameter Wall Thickness Length
Inch mm mm meter
1/8″ 10.3mm 1.24-2.41mm 4-12m
1/4″ 13.7mm 1.65-3.02mm 4-12m
3/8″ 17.1mm 1.65-3.20mm 4-12m
1/2″ 21.3mm 1.65-7.47mm 4-12m
3/4″ 26.9mm 1.65-7.82mm 4-12m
1″ 33.4mm 1.65-9.09mm 4-12m
1-1/4″ 42.3mm 1.65-9.70mm 4-12m
1-1/2″ 48.3mm 1.65-10.15mm 4-12m
2″ 60.3mm 1.65-11.07mm 4-12m
2-1/2″ 76.1mm 2.11-14.02mm 4-12m
3″ 88.9mm 2.11-15.24mm 4-12m
3 1/3″ 101.6mm 2.11-8.08mm 4-12m
4″ 114.3mm 2.11-17.12mm 4-12m
5″ 141.3mm 2.77-19.05mm 4-12m
6″ 168.3mm 2.77-21.95mm 4-12m
8″ 219.1mm 2.77-22.23mm 4-12m
10″ 273mm 3.40-35.40mm 4-12m
12″ 323.8mm 3.96-25.40mm 4-12m
14″ 355.6mm 3.96-35.71mm 4-12m
16″ 406.4mm 4.19-40.49mm 4-12m
18″ 457mm 4.19-45.24mm 4-12m
20″ 508mm 4.78-50.01mm 4-12m
22″ 559mm 4.78-53.98mm 4-12m
24″ 610mm 5.54-59.54mm 4-12m
26″ 660mm 7.92-12.70mm 4-12m
28″ 711mm 7.92-12.70mm 4-12m
30″ 762mm 6.35-12.70mm 4-12m
32″ 813mm 7.92-12.70mm 4-12m

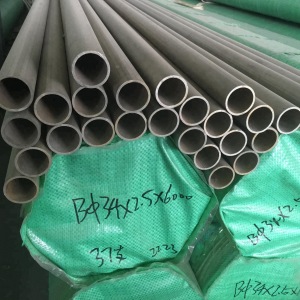

Stainless steel precision welded pipe

( for food grade)

Overview

  • Standard : ASTM, DIN, EN, JIS
  • Place of Origin : DAINAN, China (Mainland)
  • Brand Name : JawaySteel
  • Model Number : 201/202/304/316/316L/430
  • Type : Welded
  • Steel Grade : 300 Series
  • Application : Construction, dairy.decorate.water
  • Certification : ISO
  • Welding Line Type : ERW
  • Thickness : 1mm-40mm
  • Outer Diameter : 6~1200
  • Product type : welded and seamless
  • Certificate : ISO9001-2008



Description  stainless steel welded pipe
Supply Capacity 3000 tons/Year
Process Method Automatic welding or seamless precision rolling
Out Diameter 6-323.8mm
Wall Thickness 1.0mm.1.2mm 1.5mm.1.65mm.2.0mm.2.1m3.0mm and so on
Length 6m, or as customers demand
Steel Grade
301 (Ni : 6%), 304, TP304, TP304L/304L, 321, TP321, 316, TP316L, 316L,
Standards ASTM A249, A269, A312, A554, A270
Specification O.D: 1/4″ – 12″ (inch)
W.T: SCH5S, SCH10S
Or non-regular size to be tailored as required.
Application Liquid delivery,for food,dairy, and so on
Packing 1.with plastic cap to protect both ends
2.plastic bag wrapped outside the pipe
3.Plywood case packing
Annealed & Pickled (for sanitary or industial pipe)
Bright Annealed
Polished to 180#, 240#, 320#, 400#, 600#
Certificate ISO 9001:2008 for sanitary stainless steel welded pipe
Delivery time 30-60 days depend on Quantity
Payment Term T/T, Irrevocable L/C at sight
Trade Term FOB , CFR , CIF

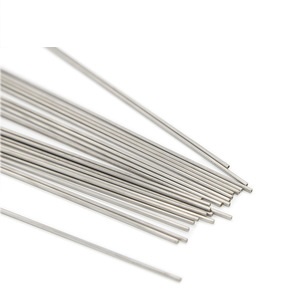

Stainless steel mirror precision polishing tube

Overview



  • Standard : AISI, ASTM, DIN, EN, GB, JIS
  • Place of Origin : DAINAN, China (Mainland)
  • Brand Name : JawaySteel
  • Model Number : ss 304 sanitary smls pipe
  • Type : Seamless
  • Steel Grade : 300 Series
  • Application : fluid,food grade,armarium
  • Certification : SGS
  • Welding Line Type : Seamless
  • Thickness : 1.65mm-30.75mm
  • Outer Diameter : 21.3mm-711mm
  • Product name : stainless steel mirror polishing precision tube
  • Technical : Cold Drawn/Cold rolled
  • Surface Treatment : Polishing
  • Certs : ISO,CE,SGS,TS,ASME,PED
  • Special Pipe : Thick Wall Pipe
  • Delivery Time : 7-30Days,Depends on quantity
  • Special Desgin : Available
  • Length : Random or fixed



stainless steel mirror polishing precision tube price
Standard GB,  JIS, DIN, 3A, AISI, SMS, ISO
Material Grade ASTM A270/A269
TP304 TP304L TP316 TP316L TP347 TP347H TP321 TP321H TP310 TP310S
TP410 TP410S TP403
S31803/S32205 S32750 S32760
Outer Diameter Seamless Pipe: 1/2″-28″
21.3mm-711mm
Thickness Seamless Pipe: SCH5/SCH10/SCH40/SCH80/SCH160/XXS
1.65mm-30.75mm
Length 5.8-12 m or as customers’ request
Tolerance Acording to the Standard.
Packing A bundles wrapped with plastic bag and put into plywood case.
Surface 180G, 320G, 400G Satin / Hairline
Test UT, HT, 100%RT,ect, and others according to the standard,or as the requests of the customers
Certificate ISO9001-2015,ASME, TS,CE,PED
Delivery Time 7-30Days, Depends on quantity(we have plenty stocks of normal sizes.)
