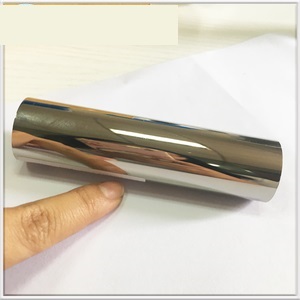

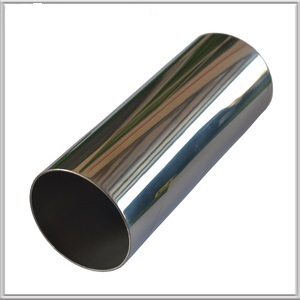

316 Stainless Steel Welded Precision Pipe By JawaySteel
Basic Info
- Model NO.: Stainless Welded Steel Pipe
- Product: 316 Stainless Steel Welded Precision Pipe
- Outside Diameter: 6-630mm
- Thickness: 0.15-25mm
- Length: Random Length/Fixed Length or as Request
- Grade: TP304,TP304L,Tp304h,Tp321,Tp321L,Tp316,Tp316L
- Application: Pipeline,Transport,Medical Equipment,Heat Ex-Chang
- Finish: Hairline Satin,#80, #180, #240, # 320,# 400, # 600
- Tolerance: Od+/-0.2mm,Thickness +/-0.05mm
- Package: Wooden &Plywood Case. PVC Bags
- Trademark: JawaySteel
- Transport Package: Plastic Bag + Boxes or Wood
- Specification: 6-630mm*0.15-25mm
- Origin: China
| Min. Order / Reference FOB Price | |
|---|---|
| 1 Ton | US $1,200-2,800/ Ton（This price is for reference only.） |
| Port: | China |
|---|---|
| Production Capacity: | 5000 Tons/Month |
| Payment Terms: | L/C, T/T, etc. |
| Type: | Welded |
|---|---|
| Technique: | Cold Drawn |
| Material: | Stainless Steel |
| Surface Treatment: | Polished |
| Usage: | Pipeline Transport, Boiler Pipe, Machinery Industry, Chemical Industry, Construction & Decoration, Special Purpose |
| Section Shape: | Round |
Detailed Description:
| Name | Stainless Welded Steel Pipe |
| Standard | ASTM A554, A249, A269 and A270, A312GB/T4237-2009; GB/T4238-2009; GB/T3280-2007; GB/T4237-2007JIS G4304-2005; JIS G4305-2005; ASTM A240/240M-10; ASTM A240-05 (we can also produce according to drawing and standards provided by customers) |
| Material: | 201(Ni0.8%),/202(Ni3.5%~4.5%)/301(Ni5%)/302/303/304(Ni8%,Cr18%) /304L/304H/304N/305/309/309S/310S/316(Ni10%,Cr18%),316L(Ni10%~14%)/ 316Ti/316N/316LN/317/317L/321/321H/347/347H/408/409/ 410416/420/430/436/439/440/441/443/444/620/630/904L etc |
| Outer Diameter | 6-630mm |
| Wall Thickness | 0.15-25mm |
| Length | Fixed or Random, by customer’s requirements |
| Surface | 2B,BA,No.1,No.4. 180G, 320G, 400G Satin / Hairline 400G, 500G, 600G or 800G Mirror finish |
| Finish | Hairline satin,#80, #180, #240, # 320,# 400, # 600 polish |
| Tolerance | a) Outer Diameter: +/- 0.2mm b) Thickness: +/- 0.02mm c) Length: +/- 5mm |
| Type | round, square, groove, oval, shape tubes; |
| Technical | Cold Rolled Hot Rolled |
| Package | With paper rolled inside and with wooden pallets or PVC coating or customize packing Export standard package in bundled or as required. |
| Quality | First grade |
| Test | Squash test, extended test, water pressure test, crystal rot test, heat treatment, NDT |
| Application: | Decoration construction, upholstery, industry instrument |
We are 316 Stainless Steel Welded Precision Pipe manufacturer. If you want to get the latest quotation about it, you are welcome to contact us.
