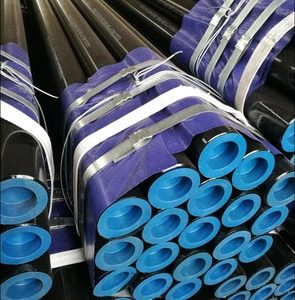

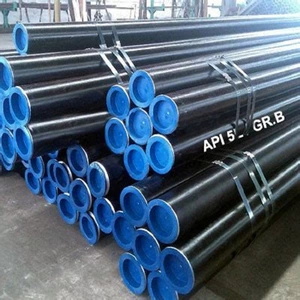

API 5L seamless steel pipe is a seamless steel pipe for pipeline steel – API 5L pipeline steel seamless steel pipe.



Seamless steel pipe pipeline steel: GR.B, X42, X46, 52, X56, X60, X65, X70.



The line pipe is used to transport the oil, steam and water from the ground to the oil and gas industrial enterprise. The line pipe includes seamless pipe and welded steel pipe, and the pipe end has a flat end, a threaded end and a socket end;



The connection method is welding, coupling connection, socket connection and the like.



• Outer diameter : 13.7mm-1219.8mm
• Wall thickness : 2.11mm-100mm
• Standard : API5L ASTM ASME, etc.



With the development of API 5L seamless steel pipe technology and the advancement of molding and technology, the application range of API 5L pipe seam pipe is gradually expanding.



Especially in the API 5L large-diameter seamless steel pipe, the advantages are more obvious. Coupled with the cost factor, API 5L seamless steel pipe has occupied a dominant position in the pipeline steel pipe field.



API 5L seamless steel pipe:



1) Standard : API5L ASTM ASME B36.10. DIN

2) Material : API5LGr.B A106Gr.B, A105Gr.B, A53Gr.B, A243WPB, etc.

3) Outer diameter : 13.7mm-1219.8mm

4) Wall thickness : 2.11mm-100mm

5) Length : 5.8 meters, 6 meters, 11.6 meters, 11.8 meters, 12 meters fixed length

6) Packing : spray paint, bevel, cap, galvanized steel strap, yellow sling, integral woven bag.



Performance parameter



Material	GR.B	X-42
Outer diameter tolerance	1%	%
Wall thickness tolerance	12.5%	12.5%
Length tolerance	2%	2%
Groove angle	35°	35°
Beveled edge size	1/16inch±1/32inch	1/16inch±1/32inch
Test water pressure and holding time	1070psig 5second	1070psig 5second
Tensile strength	60000=414mpa	60000=414mpa
Yield Strength	35000=241mpa	42000=290mpa
Elongation	≥30%	≥30%



---

API 5L seamless steel pipe price

（Below are the quotes from different suppliers for API 5L seamless steel pipe. Interestingly, the same product, the three suppliers offer different prices.

Therefore, multiple inquiry is the key before purchasing the API 5L seamless steel pipe.

Due to price changes in real time, the following prices are for reference only.）

STM A106/ASTM A53 /API 5LSEAMLESS STEEL PIPE STEEL TUBE FACTORY

25*2.5	325*8
38*3.5	325*9
48*4	377*10
57*3.5	426*11
76*4	426*12
89*4.5	426*11
108*4.5	508*12
133*4.5	610*10
159*6	762*12
168*8	820*14
219*6	914*15
273*7	1020*17
273*8	508*15
